Gas Generator

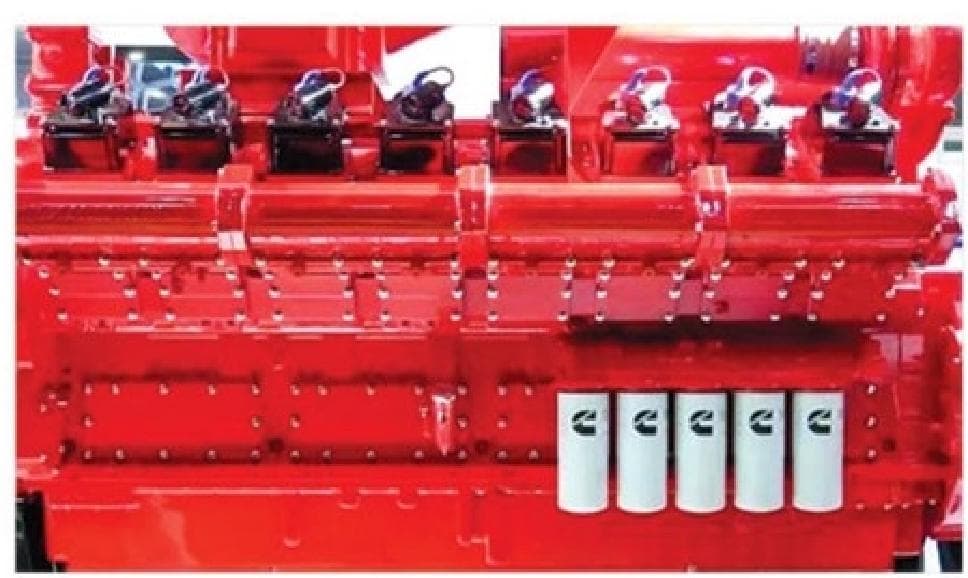

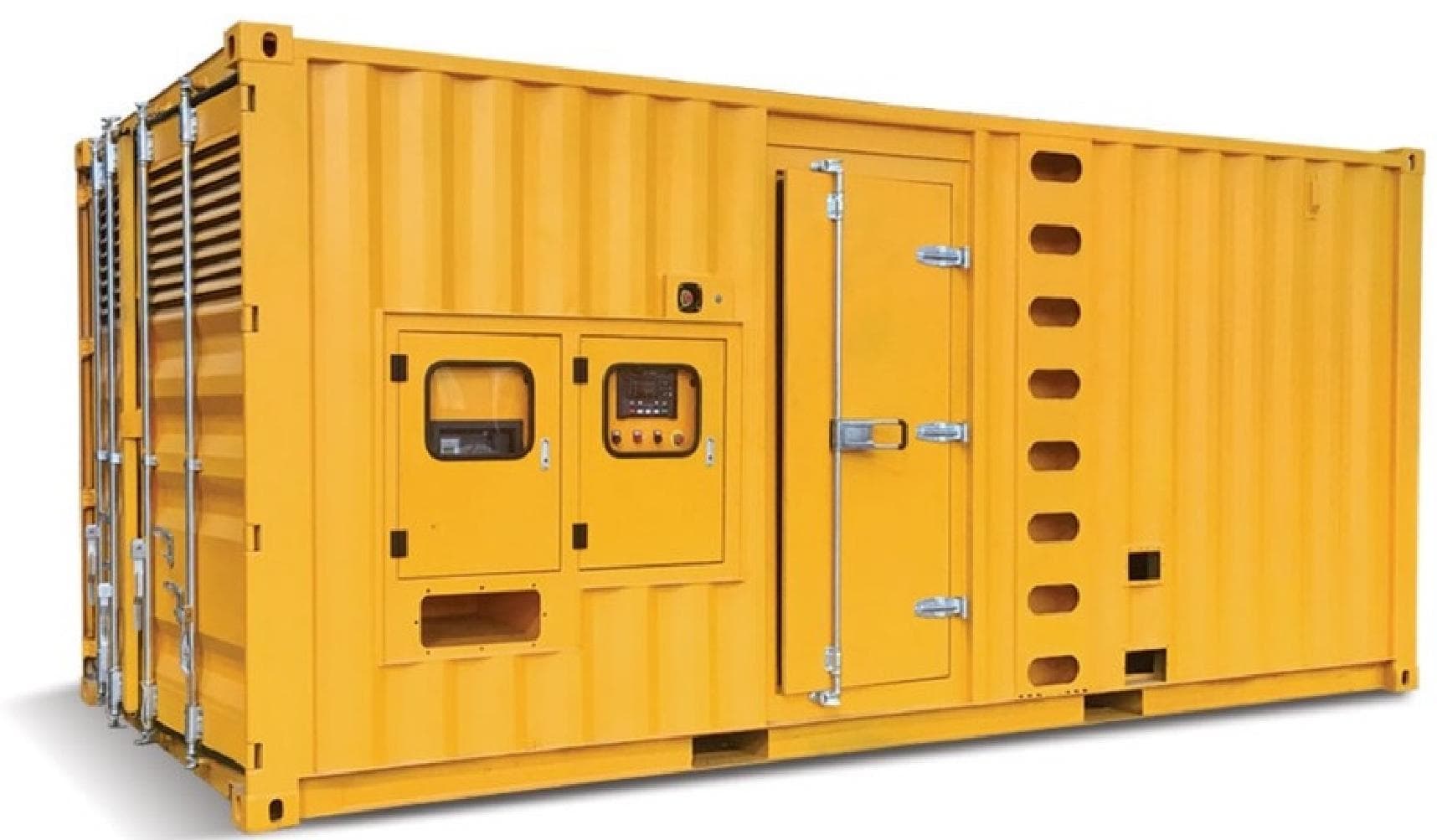

Cummins natural gas genset parameters

50HZ,1500rpm,COS=0.8,400/230V,3P 4W			Diesel Engine		Alternator		Overall Size (mm)	Net Weight (kg)
Genset Model	Rated Power [kw/kvA)	Standby Power (kw / kvA)	Model	Rated Power (kw)	Model	Rated Power [kw/kvA)	Overall Size (mm)	Net Weight (kg)
SC30GFC	30/37.5	33/41.25	4BTA3.9-GM47	47	BCFM184J	30/37.5	2000x820x1600	1170
SC35GFC	35/43.75	38.5/48.13	4BTA3.9-GM47	47	UCM224D	35/43.75	2000x820x1600	1200
SC40GFC	40/50	44/55	4BTA3.9-GM47	47	UCM224E	40/50	2000x820x1600	1230
SC50GFC	50/62.5	55/68.75	6BT5.9-GM80	80	UCM224F	50/62.5	2300x850x1650	1380
SC60GFC	60/75	66/82.5	6BT5.9-GM80	80	UCM224G	60/75	2300x850x1650	1410
SC65GFC	65/81.25	71.5/89.4	6BT5.9-GM80	80	UCM274C	65/81.25	2300x850x1650	1450
SC80GFC	B0/100	38/110	6BT5.9-GM100	100	UCM274D	80/100	2400x850x1650	1510
SC100GFC	100/125	110/137.5	6BTAA5.9-GM115	115	UCM274E	100/125	2400x850x1650	1540
SC115GFC	115/143.75	126.5/158.2	6CTA8.3-GM155	155	UCM274F	115/143.75	2500x850x1650	1620
SC125GFC	125/156.25	137.5/171.9	6CTA8.3-GM155	155	UCM274G	125/156.25	2500x850x1650	1640
SC140GFC	140/175	154/192.5	6CTA8.3-GM155	155	UCM275F	140/175	2500x850x1650	1670
SC152GFC	152/190	167.2/209	NT855-GM	173	UCDM274J	152/190	2900x1100x1950	1960
SC170GFC	170/212.5	187/233.75	NTA855-G1M	240	HCM4C	170/212.5	2900x1100x1950	2020
SC180GFC	180/225	198/247.5	NTA855-G1M	240	UCDM274K	180/225	2900x1100x1950	2060
SC200GFC	200/250	220/275	NTA855-G1M	240	HCM4D	200/250	2900x1100x1950	2130
SC240GFC	240/300	264/330	NTA855-G2M	284	HCM4E	240/300	3100x1100x1950	2200
SC270GFC	270/337.5	297/371.25	NTA855-G4M	317	HCM4F	270/337.5	3100x1100x1950	2310
SC300GFC	300/375	330/412.5	KTA19-G2M	336	HCM5C	300/375	3350x1250x2000	3610
SC320GFC	320/400	352/440	KTA19-G3M	403	HCM5C	320/400	3350x1250x2000	3750
SC360GFC	360/450	396/495	KTA19-G3M	403	HCM5D	360/450	3350x1250x2000	3870
SC400GFC	400/500	440/550	KTA19-G4M	448	HCM5E	400/500	3350x1250x2000	4130
SC440GFC	440/550	484/605	KTA38-GM	664	HCM5E	440/550	4300x1820x2150	7020
SC460GFC	460/575	506/632.5	KTA38-GM	664	HCM5F	460/575	4300x1820x2150	7250
SC500GFC	500/625	550/687.5	KTA38-GM	664	LVM634B	500/625	4300x1820x2150	7330
SC560GFC	560/700	616/770	KTA38-G2M	664	LVM634C	560/700	4400x1820x2150	7650
SC600GFC	600/750	660/825	KTA38-G2M	664	LVM634D	600/750	4400x1820x2150	7760
SC660GFC	660/825	726/907.5	KTA38-G5M	880	LVM634E	660/825	4500x1820x2150	8320
SC710GFC	710/887.5	781/976.25	KTA38-G5M	880	LVM634F	710/887.5	4500x1820x2150	8560
SC800GFC	800/1000	880/1100	KTA38-G5M	880	LVM634G	800/1000	4550x1820x2150	B910

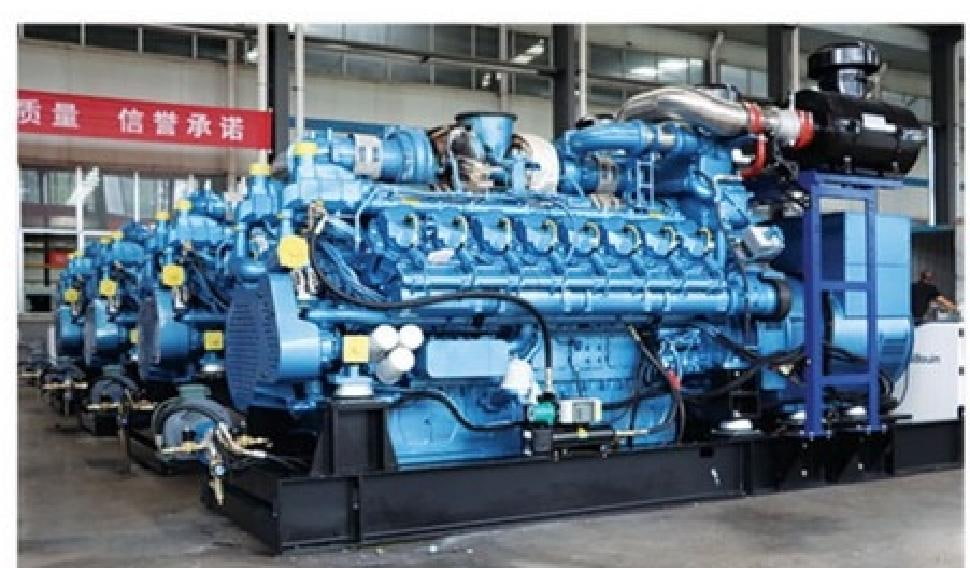

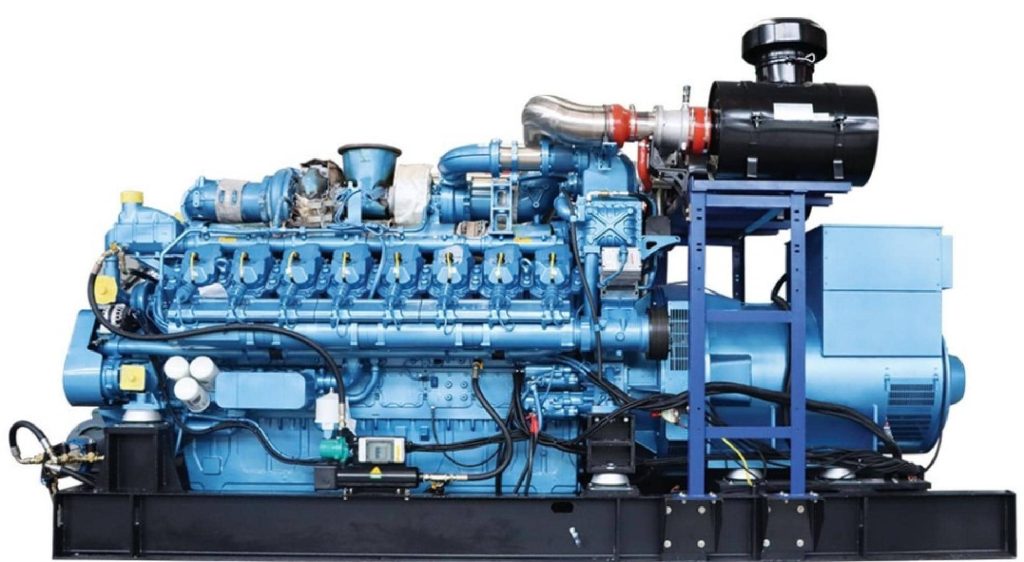

Weichai natural gas genset parameters

Genset Model	Prime Power (KW/KVA)	Model	No. of Cylinder	Displacement (L)	Overall Size (mm)	Gross Weight (kg)
SW110NFK/S	80/100	WP6D132E300NG	6	6.75	24008601400	1400
SW140NFK/S	100/125	WP6D132E300NG	6	6.75	24008601400	1400
Sw200NFK/S	150/187.5	WP10D200E300NG	6	9.726	280010501600	2150
sw275NFK/S	200/250	WP13D317E300NG	6	12.54	290013501650	2400
SW350NFK/S	250/312.5	WP13D317E300NG	6	12.54	300013501650	2500
SW500NFK/S	350/437.5	6M33D450E310NG	6	19.6	350017002060	4550
SW550NFK/S	400/500	6M33D450E310NG	6	19.6	350017002060	4550
Sw700NFK/S	500/625	12M26D605E300NG	12	31.8	400020002300	6800
SW1100NFK/S	800/1000	12M33D900E310NG	12	39.2	480022002500	8500
SW1375NFK/S	1000/1250	16M33D1280NG10	16	52.3	435017002450	10000
SW1650NFK/S	1200/1500	16M33D1280NG10	16	52.3	435017002450	10100
Sw2100NFK/S	1500/1875	12M55D1588A0NG	12	65.65	445021002780	15000

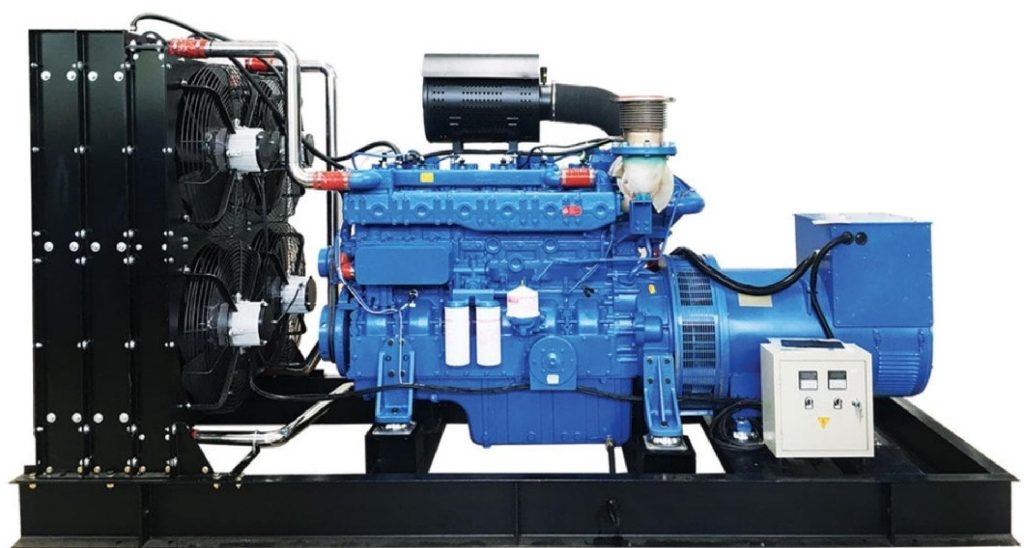

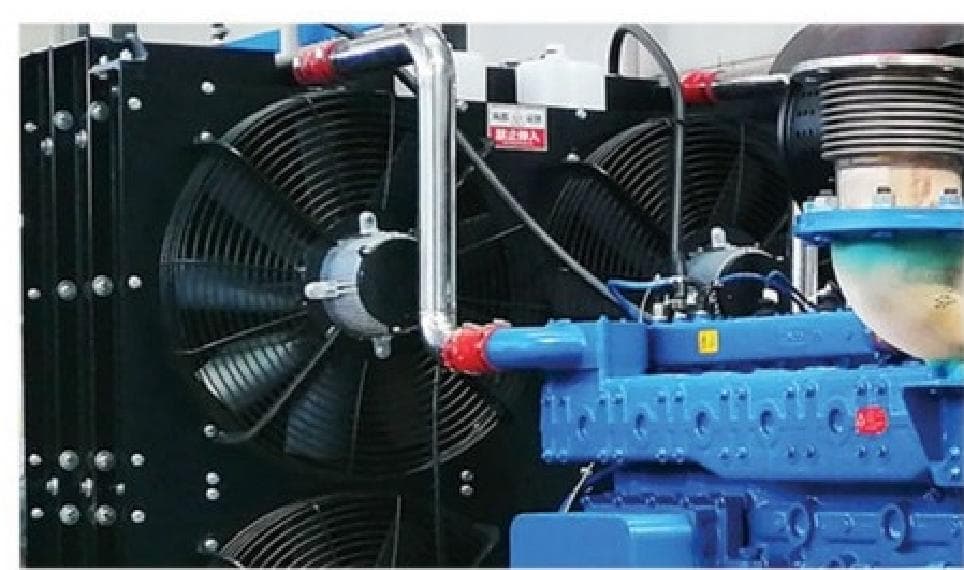

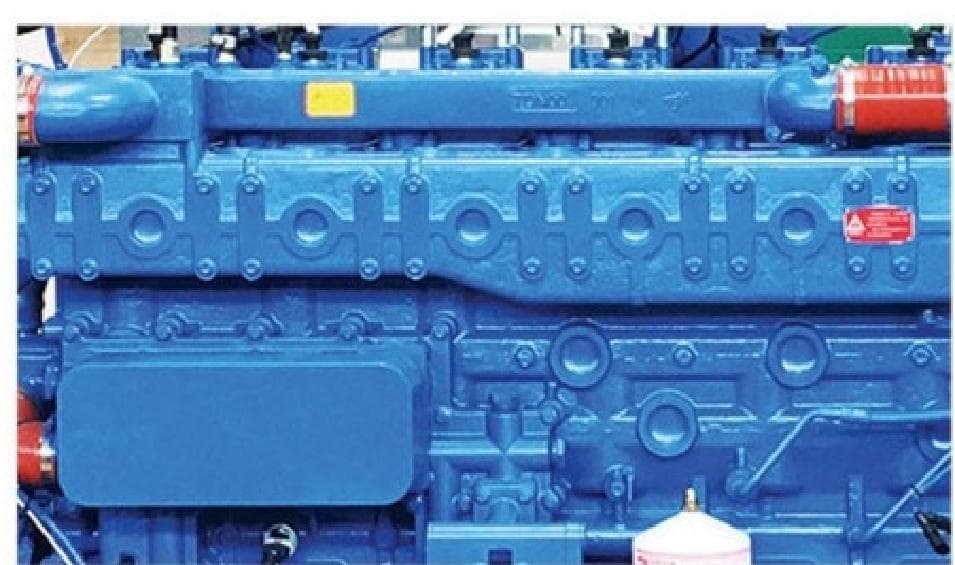

Yuchai natural gas genset parameters

Genset Model	Prime Power (KW/KVA)	Model	No.of Cylinder	Displacement (L)	Overall Size (mm)	Gross Weight (kg)
SY200NFK/S	150/187.5	YC6MK270N-D30	6	10.34	285011501550	2400
SY275NFK/S	200/250	YC6K350N-D30	6	12.94	310012701670	3000
SY350NFK/S	250/312.5	YC6K420N-D30	6	12.94	310012701670	3000
SY350NFKA/S	250/312.5	YC6T450N-D30	6	16.35	335013501730	3300
SY400NFK/S	300/375	YC6TD600N-D32	6	19.6	355016202100	4300
SY500NFK/S	350/437.5	YC6TD600N-D32	6	19.6	365016202100	4400
SY500NFKA/S	350/437.5	YC6TD600N-D31	6	19.6	365016202100	4400
SY550NFK/S	400/500	YC6C750N-D30	6	39.58	470019902300	7000
SY700NFK/S	500/625	YC6C935N-D30	6	39.58	420016102200	7100
SY825NFK/S	600/750	YC6C1020N-D30	6	39.58	425016102200	7150
SY1100NFK/S	800/1000	YC12VTD1350N-D30	12	39.2	500022602550	9500
SY1375NFK/S	1000/1250	YC12VC1680N-D31	12	79.17	450019002900	15000
SY2100NFK/S	1500/1875	YC16VCG-1500N5HC	16	105.6	627020702846	21000

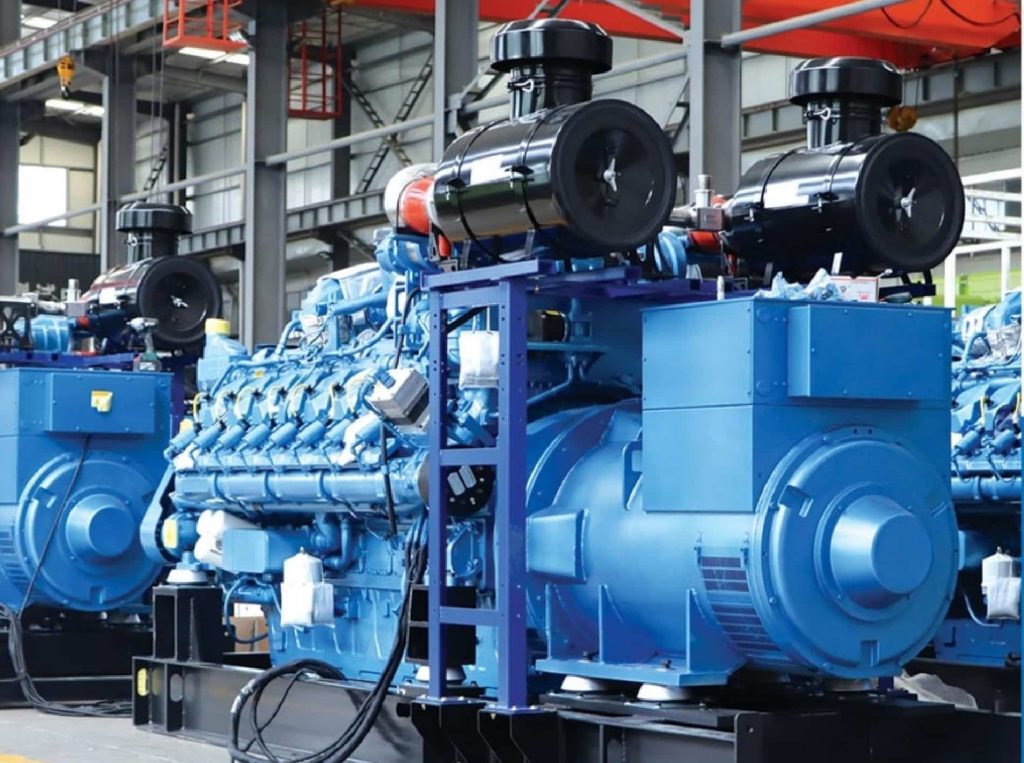

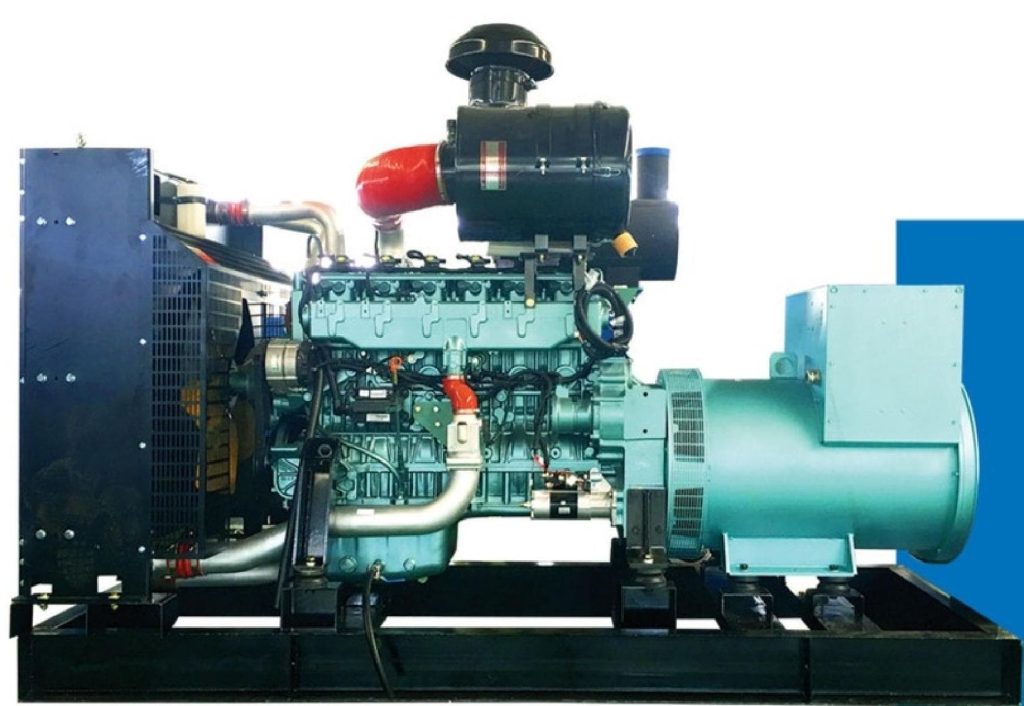

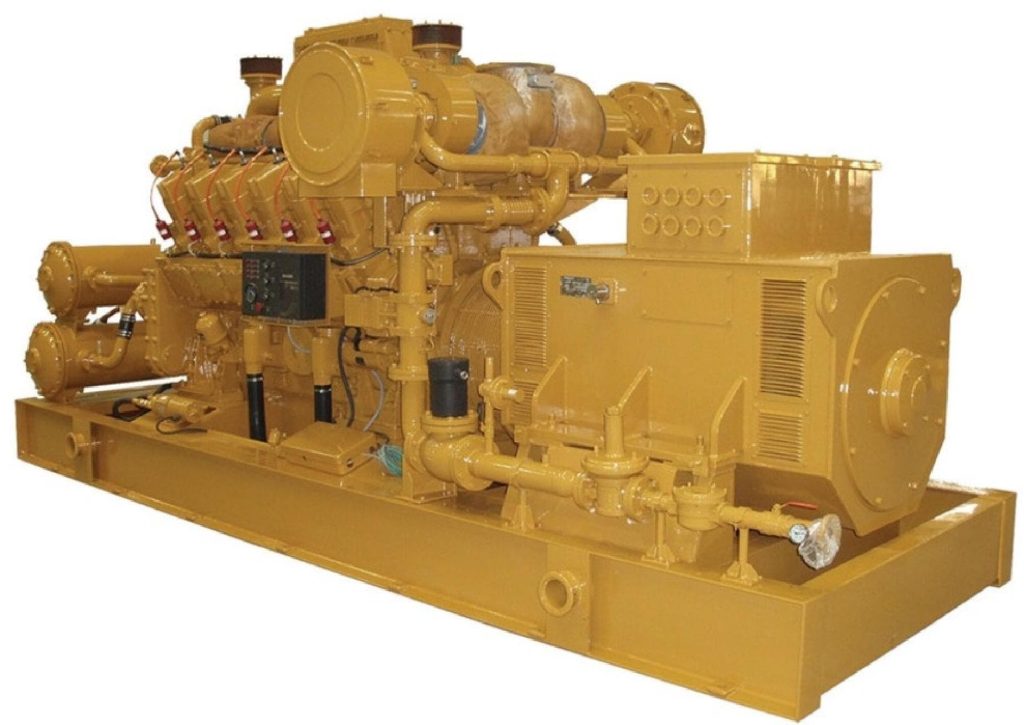

Transnationalpower natural gas genset parameters

Genset Model	Prime Power (KW/KVA)	Model	No.of Cylinder	Displacement (L)	Overall Size (mm)	Gross Weight (kg)
SH42NFK/S	30/37.5	4105D-NG	4	3.61	17007601200	700
SR42NFK/S	30/37.5	LRN4M5-D	4	5.13	17507601200	700
SH70NFK/S	50/62.5	6105ID-NG	6	7.1	22007601300	1250
SR70NFK/S	50/62.5	LRN4M5Z-D	4	5.13	18507601300	950
SH110NFK/S	80/100	6105IZLD-NG	6	7.1	22508001350	1300
SR110NFK/S	80/100	LRN6M5Z-D	6	7.7	22508001350	1300
SR140NFK/S	100/125	N6S4Z-D	6	9.726	270010501600	1550
SZ140NFK/S	100/125	T10.15D	6	9.726	275010501600	1600
SZ200NFK/S	150/187.5	WT615D	6	9.726	280010501600	1650
SZ200NFAK/S	150/187.5	T10.15D	6	9.726	280010501600	1650
SZ275NFK/S	200/250	T12D-3	6	11.596	290012001900	2200
SZ275NFAK/S	200/250	T12.15D	6	11.596	290012001900	2200
SZ350NFK/S	250/312.5	MT13D-5	6	12.419	330015702000	3000
SZ350NFAK/S	250/312.5	T13.15D	6	12.419	330015702000	3000
SS350NFK/S	250/312.5	SC13ET450D2	6	12.8	308012301670	2760
SJ700NFK/S	500/625	G12V190ZLT-2	12	71.5	619523302776	13800
SJ700NFK/S	500/625	12V190ZDT-2	12	71.5	456620402780	11800
SJ1000NFK/S	750/937.5	C12V190ZLT-2	12	78.3	477020402250	13000
SJ1500NFK/S	1100/1375	H16V190ZLT-2	16	97.53	599821802540	19800
SJ1650NFK/S	1200/1500	H16V190ZLT2-2	16	97.53	775725852864	23000
SJ1650NFK/S	1200/1500	L12V200ZLT-2	12	96.1	600023002800	17000
SJ2100NFK/S	1500/1875	L16V190ZLT-2	16	115.7	810023002800	26700
SJ2200NFK/S	1600/2000	L16V200ZLT-2	16	127.3	810023002800	26700
SJ2750NFK/S	2000/2500	L20V190ZLT-2	20	144.6	750023002800	30000
SJ3000NFK/S	2200/2750	L20V200ZLT-2	20	160.2	790023002800	20600
SJ4125NFK/S	3000/3750	12V 26/32	12	204	833029303638	48000
SJ5500NFK/S	4000/5000	16V 26/32	16	272	943529304175	70000

We has more than 50 patented technology, of which more than 20 patent use in gas generator sets. The generator set produced by us is equipped with patented technologies such as preheating, pre-supply, mixer auxiliary, gas explosion-proof and speed sensing to improve the performance of the original products and improve the overall quality of the gen-set.

Professional manufacturing experience and comprehensive product range in the field of gas generators. The six product lines cover natural gas generator, gas generator, biogas generator, biomass generator, coal gas generator and landfill gas generator.
