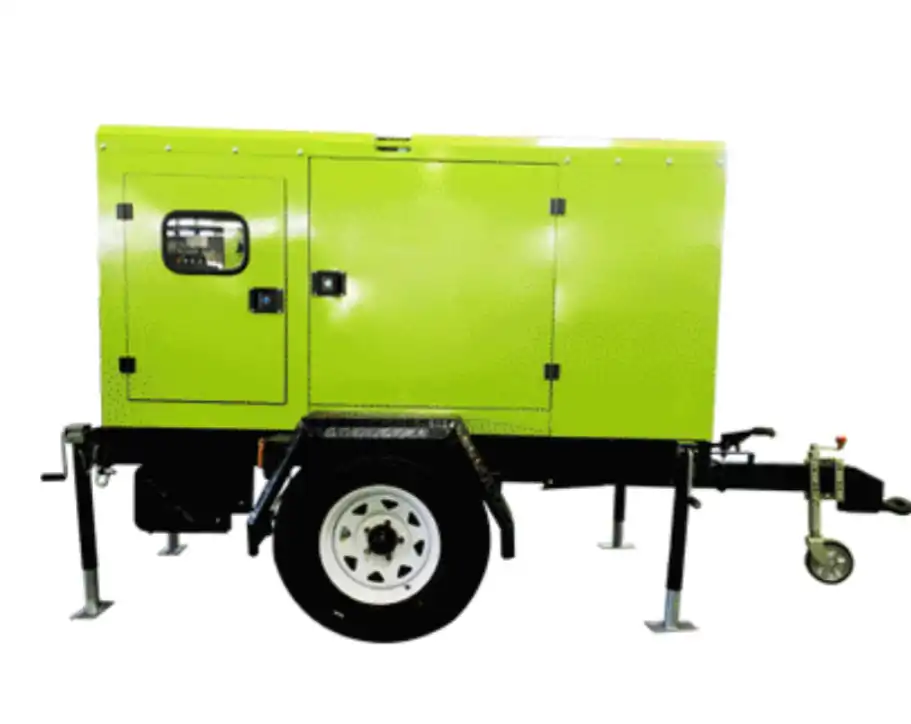

Trailer Generator

Model	SC20GFT	SC40GFT	SC80GFT	SC160GFT	SC200GFT
Rating Power(kW)	20	40	80	160	200
Engine Model	4B3.9-G	4BTA3.9-G2	6BT5.9-G	6CTAA8.3-G2	6LTAA8.9-G2
Cylinder	4	4	6	6	6
Alternator Model	PI144E	UCI224D	UCI274C	UCI274H	UCD274K
Dimension(mm)	3350x1550x2000	3550x1550x2000	4050x1600x2250	4550x1800x2400	4850x1800x2530
Canopy Size (mm)	2150x1050x1050	2350x1050x1050	2830x1050x1350	3150x1200x1500	3420x1200x1630
Weight(T)	1.4	1.8	2.15	3.1	3.4
Canopy Type	Silent	Silent	Silent	Silent	Silent
TrailerType	Leaf spring damping,Single Axis dual wheels	Leaf spring damping,Single Axis dual wheels	Leaf spring damping,double Axis four wheels	Leaf spring damping,double Axis four wheels	Leaf spring damping,double Axis four wheels


Noisy (dB)	75	75	75	75	75

Flexible traction：With movable hook, 180° turntable, flexible steering and easy operation.
Brake effective：It has a reliable air brake interface and manual brake system to ensure safety during driving.
Reliable frame：It is equipped with 4R mechanical or hydraulic support to ensure stability of the trailer.

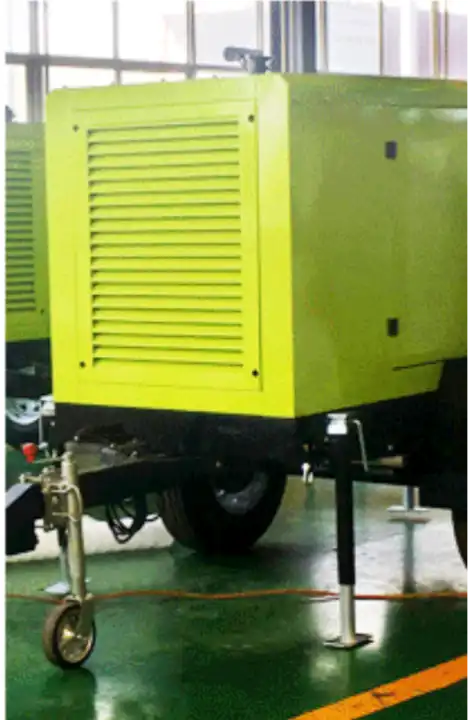

New design：There is a ventilated window at the front and a split door at the rear, which is better for operator to maintain
Customization：The size of the trailer can be specially design,The operator can walk around for easy operation and maintenance.
Generous appearance：The coating is made of high molecular polyurethane，The color can be customized by the user. The writing and decoration on the outside of the trailer can be made according to user requirements.
Fire control：There are two fire extinguishers available in case of emergency .

Significant low noise Level performance under 75dB (7m from the unit).
The overall design of the unit is compact, small in size and novel in appearance.
Multi-layer shielding impedance mismatched acoustic enclosure.
Efficient noise reduction multi-channel intake and exhaust system, air inlet and exhaust channels ensure sufficient power of the unit.
Large impedance compound muffler.
Large-capacity fuel tank, the unit running time is durable and reliable.
Special quick opening cover for easy maintenance.

Standard Configuration

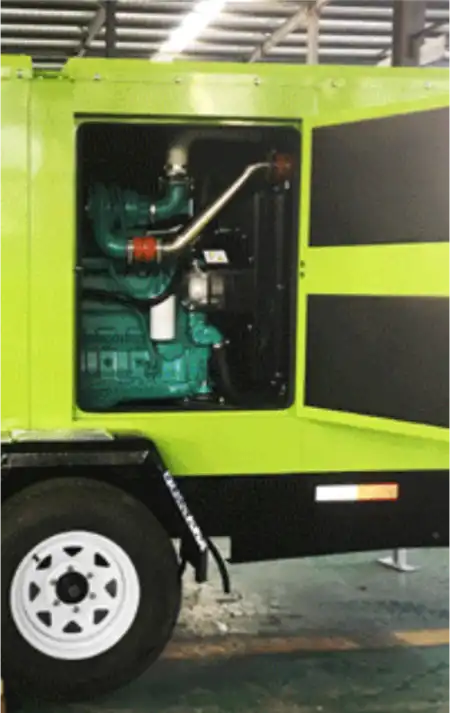

Internal combustion engine (diesel, natural gas);
Pure copper brushless AC synchronous alternator (single bearing, global warranty);
Radiator is good for ambient temperature 40℃-50℃ .

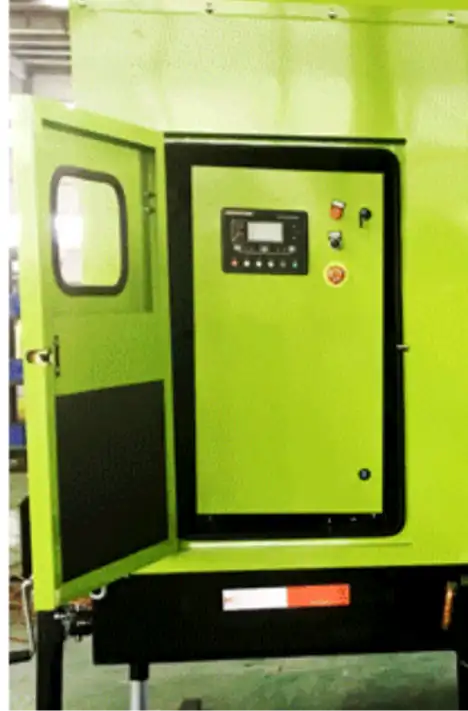

Standard control Panel,digital controller can support eight languages
Generatorsteel common base frame .

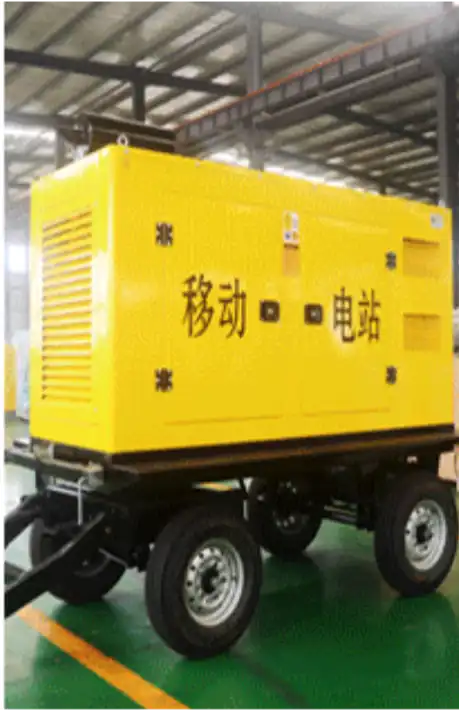

Mobile type power station trailer .
Dry air filter, fuel filter, lubricating oil filter, starter motor, and battery charger ;
Start battery and battery connection cable;
Industrial 90dB muffler and standard parts for connection
Circuit breaker
Thick plastic film packaging
Following documents：Original technical documents of engine and alternator, generator manual ,testing report ,etc .
